CT60 MODEL TUBE SETTLER & LAMELLA
Home CT44 CT48 CT52 CT54 CT60 CT68 ET56 PT49 PT59 PT69 PT79 Sheet Unit Block Framed



Model     !A55     !A60     ! R     ! P     ! A     ! Lb     ! wPvc ! wPp     !

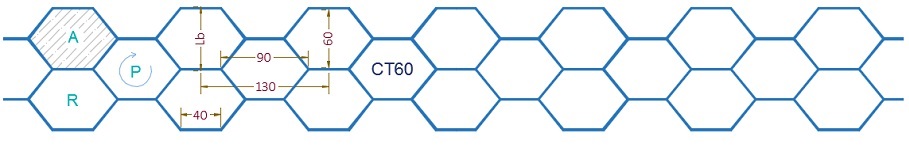

CT6012.81 m/m 11.19 m/m1.67 cm230 mm3850 mm 60 mm +Th 61 kg/m 41 kg/m

CT60 Series Tube settler & Lamella

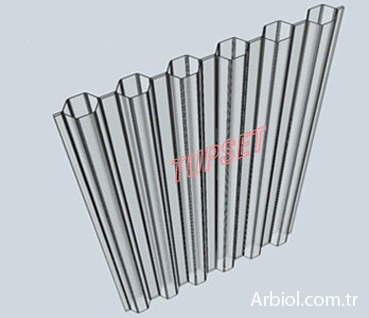

CT series lamella made of PVC or PP is used to obtain clear water and wastewater in the clarifier basins.
It is smooth, flexible and strong. The sediment accumulated in the honeycomb cell falls on the ground on its own and, therefore it does not need cleaning.
While efficiency is increased in lamellas used pools, structural pool volume, chemical, and energy consumption decrease. It is easy to assemble and service.
Because of these features, the lamella system is the best-known solution at the moment.

General information; Lamella width (W): Standard production is 1040 mm and width can be made in multiples of 130 mm. So the finished widths can be 780, 910, 1040, 1170, 1300, 1430, mm 20 mm tolerance.
The width is obtained by adding and cutting more or less than 1040 mm if desired.
Lamella length (LA): It can be made in every size. In projects H: It is given as vertical height.
Usually, the vertical (H) height is between 1000-1200 mm.
Lamella Slope (SA): It is 55-60 degrees. 60 degrees is recommended.
Standard thickness (Th): 1 mm for PVC. 0.8 mm for PP. Other thickness can be made upon request.
Standard color : Black is for PVC. Translucent white for PP. Other color can be made upon request.
Operating temperature : 50 degre for PVC. Translucent 60 degre for PP.

Application Types

1- UNIT TYPE :

Unit (single) consists of 2 sheets of the lamella.
Lamella dimensions: It can be made in any size.
Width of the lamella W: 1040 mm is preferred since it is a single piece without joint but the width can be increased or decreases to multiples of 130 mm.

2- BLOCK TYPE :

Block lamella consists of 2-10 UNIT Lamella.
All of them are welded to each other. Recommended block sizes: Block weight is sized to be 30-40 kg.
Width of the lamella W: 1040 mm is preferred since it is a single piece without joint but the width can be increased or decreases to multiples of 130 mm. L: It is suitable to be between 30-40 cm. H: It can be made according to the project (Usually 100-120 cm).

3- FRAMED TYPE :

Framed lamella, 15-20 pieces of single (UNIT) lamella are arranged in a metal frame.
Frame + Lamella = Set lamella Recommended Frame Dimensions: It is sized to be 0.7-2 m3.
Width of the lamella W: 1050 mm is preferred since it is a single piece without joint but the width can be increased or decreases to multiples of 130 mm.L: It is made according to the project between 70-150 cm. H: 100-120 cm can be made to the project.

We can be the solution; Please feel free to request technical support on Lamella related issues.
We only make the lamella system, we will definitely suggest a better solution. Request information
